16-channel GPS antenna splitter

€386.75*

Available, lead time 2-5 days

BGT-KOH
Product number: gps-spl-16-koh
Product information "16-channel GPS antenna splitter"

In several use cases there is a need for providing a GPS reference signal to a variety of device with built-in receivers. Running separate Antenna cables to each of those GPS receivers is often difficult and cumbersome.

This includes, for example

  • lab setups where many cellular base stations with GPS clock reference input are operated

  • lab setups wit a variety of measurement devices that utilized GPS disciplined reference clocks

  • in-building distribution of GPS RF signals

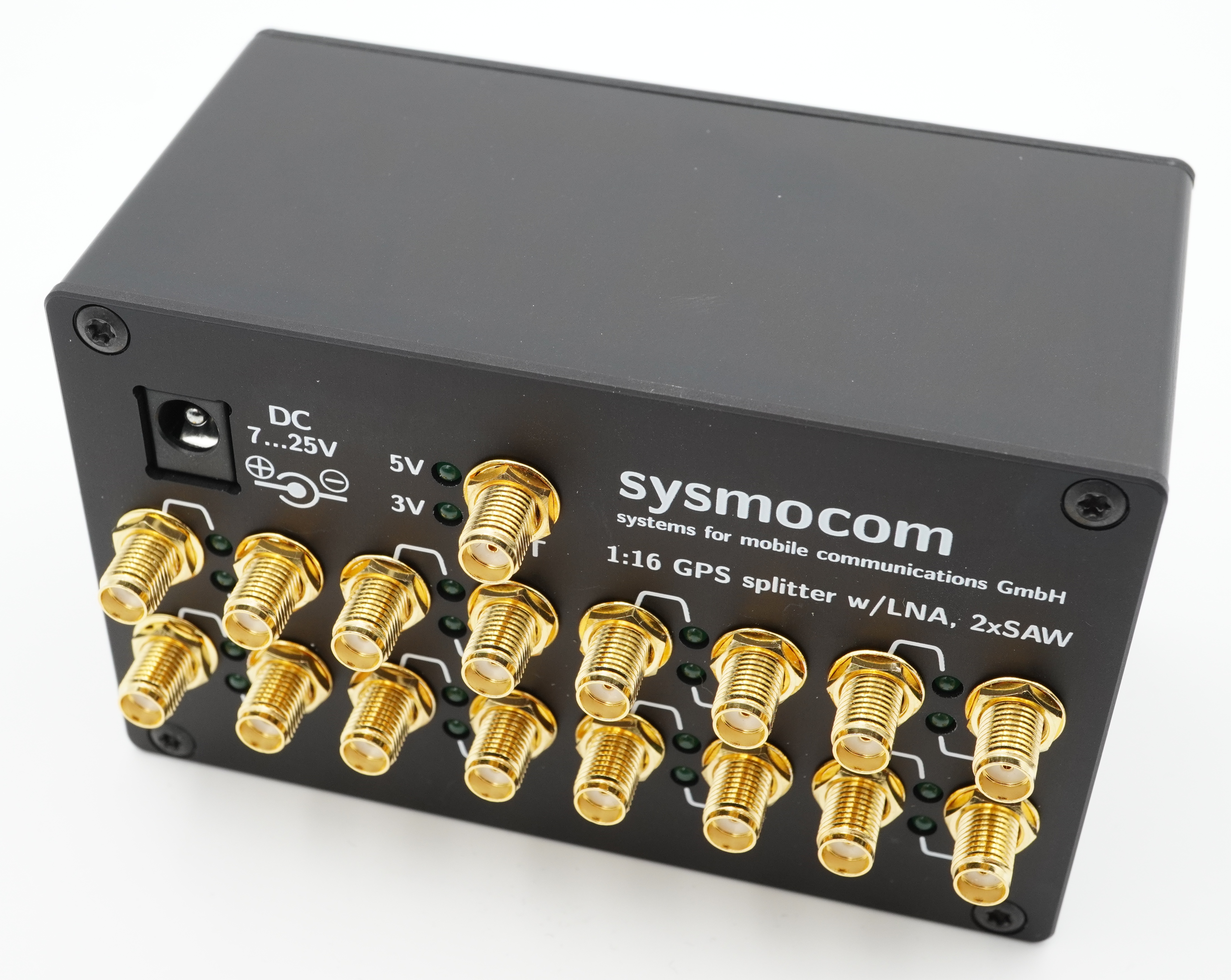

The sysmocom 16-channel GPS antenna RF splitter is the ideal solution for such setups. Its unparalleled number of 16 receiver-side RF ports allow for a large density of GPS receivers.

The GPS RF signal of a single GPS antenna (which can optionally be phantom powered by the splitter) is filtered, amplified, filtered again and then split (in two stages of 1:4 dividers) across 16 RF outputs.

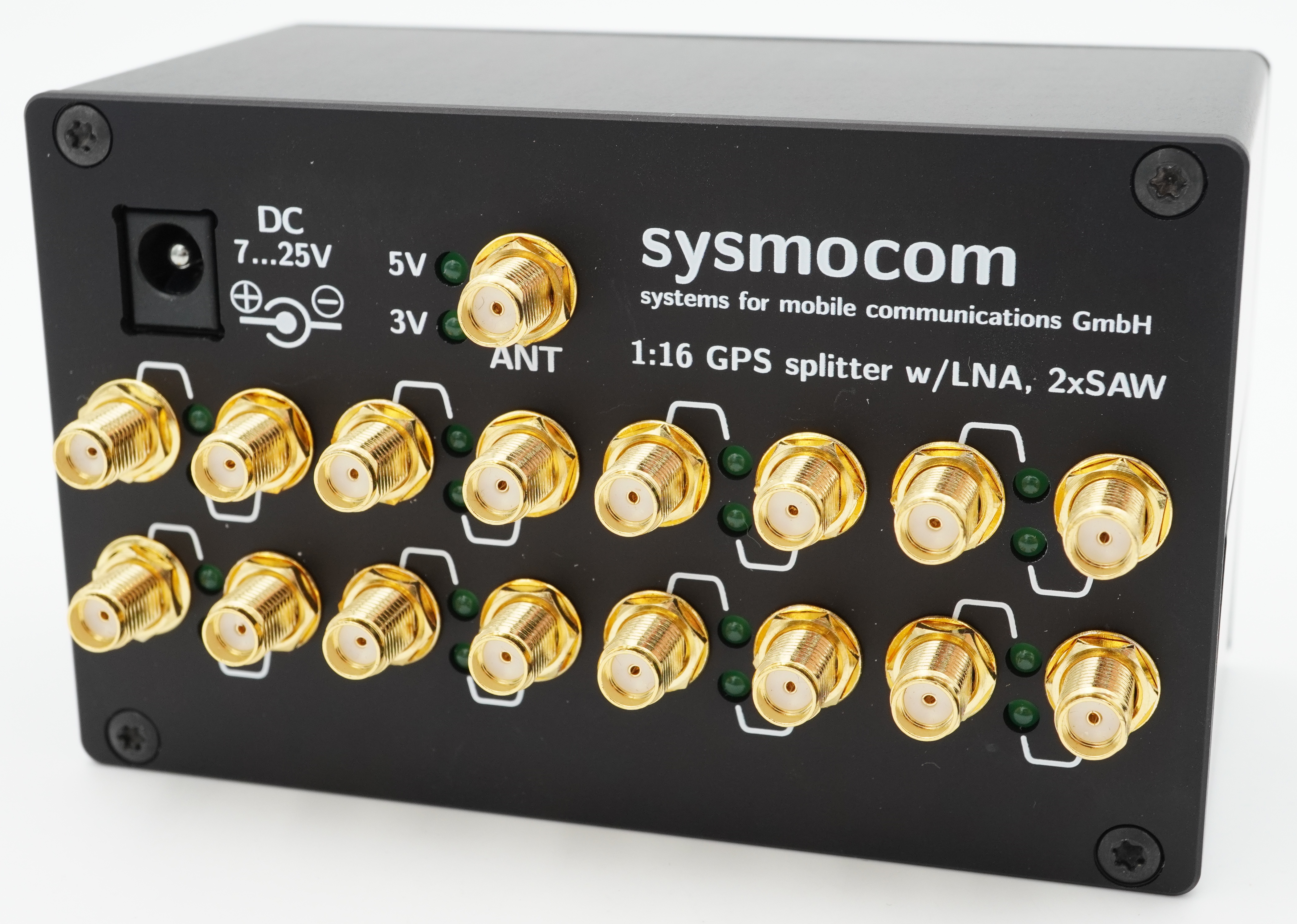

Each output features an integrated DC-block and a dedicated LED to indicate if phantom voltage is supplied by the attached receiver or not. Supported biasing voltages on the output side are in the range of 3 .. 12V DC.

The product is available in two form-factors

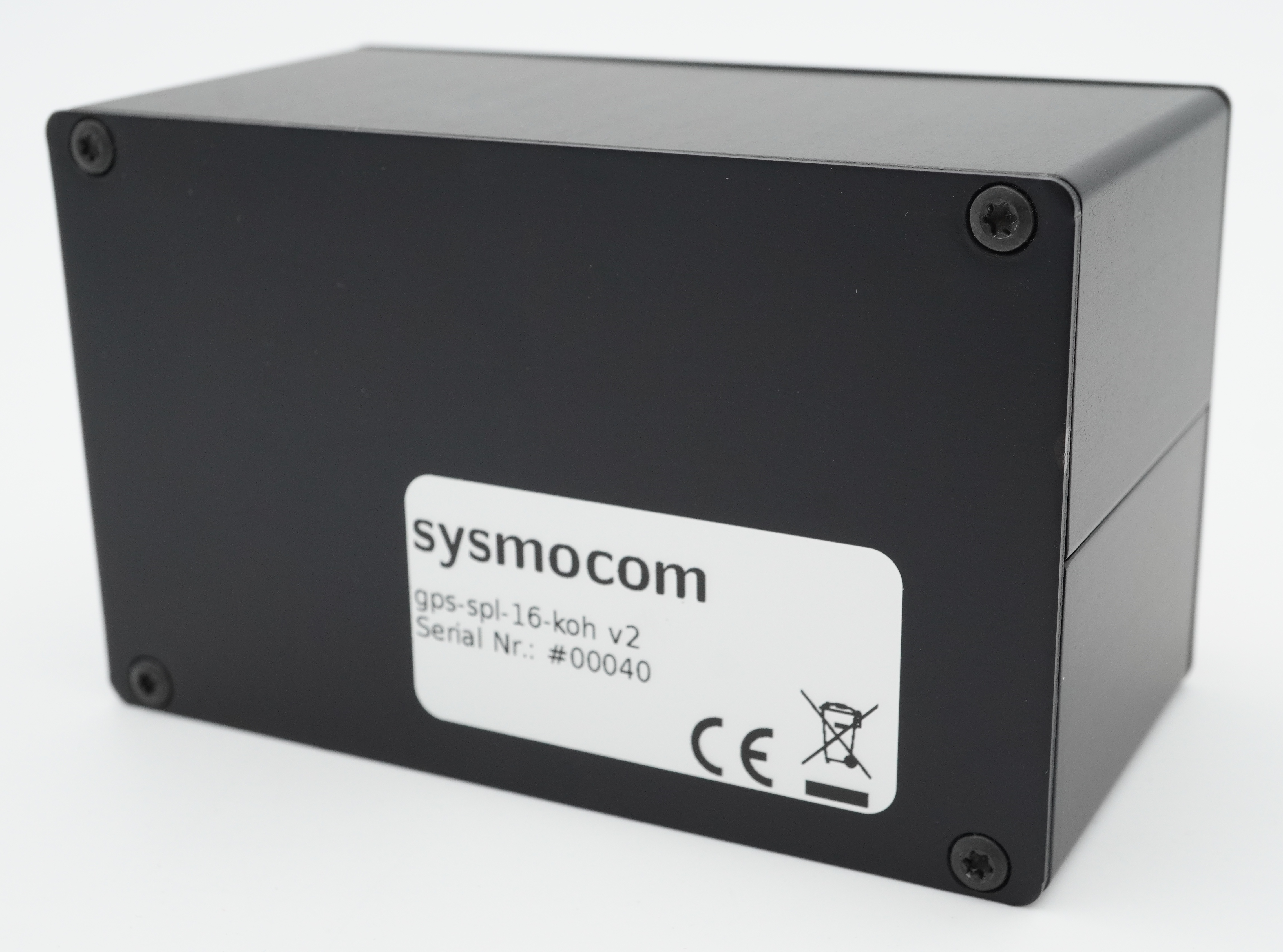

  • a stand-alone extruded aluminum desktop enclosure - useful for portable operation on a lab desk

  • as a module for a 3U component carrier - a perfect fit for larger rack-mounted lab installation or in-building GPS RF signal distribution
